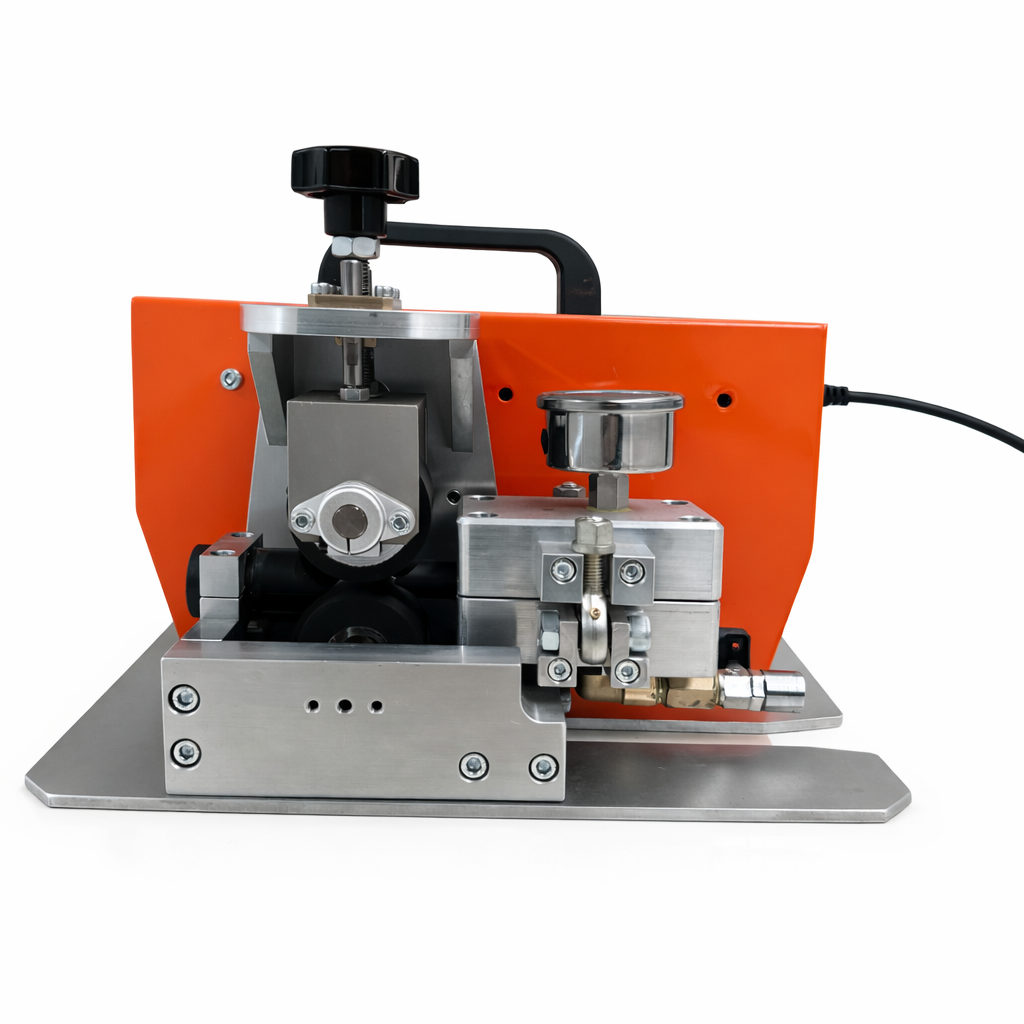

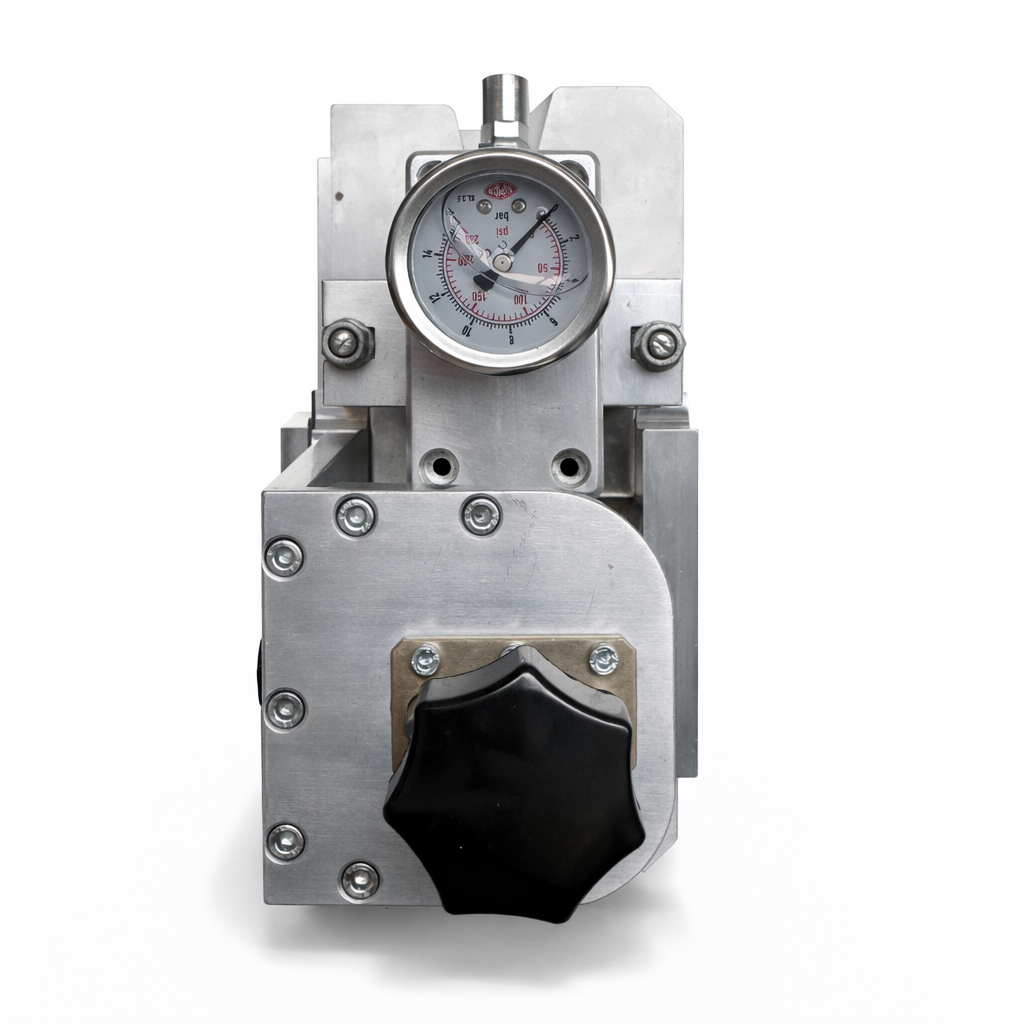

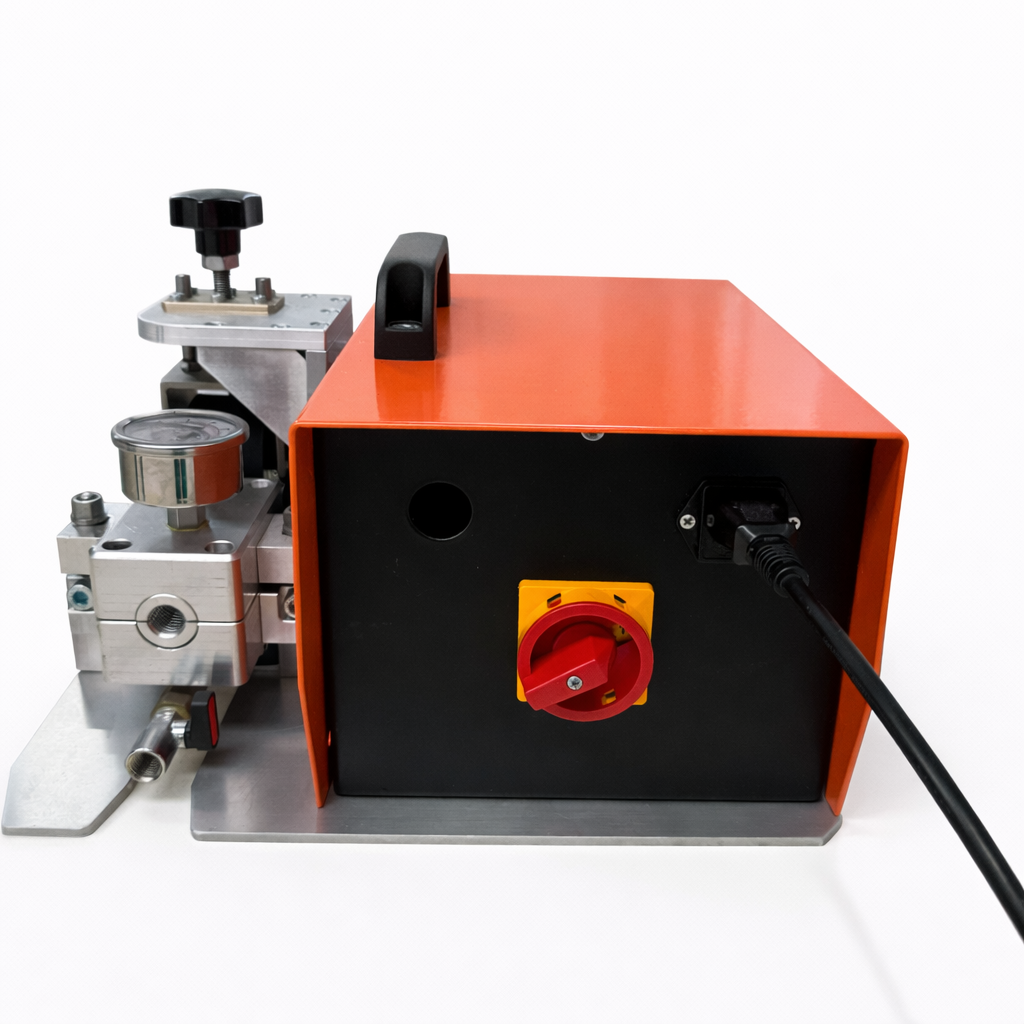

Electro FOK: A High-Performance Fiber Optic Cable Blowing Machine

The ElectroFOK fiber optic cable blowing machine is designed for optimal performance and ease of use. Its electric motor enables adjustable speed and torque, making it versatile for different cable diameters. This adaptability enhances productivity and efficiency in cable installation.

Key features of the ElectroFOK:

  • Suitable for micro cables ranging from Ø1 to Ø8 mm.
  • Can install up to 1000 meters of cable with speeds of 90 meters/min.
  • Compact design for easy transportation and installation in both indoor and outdoor environments.

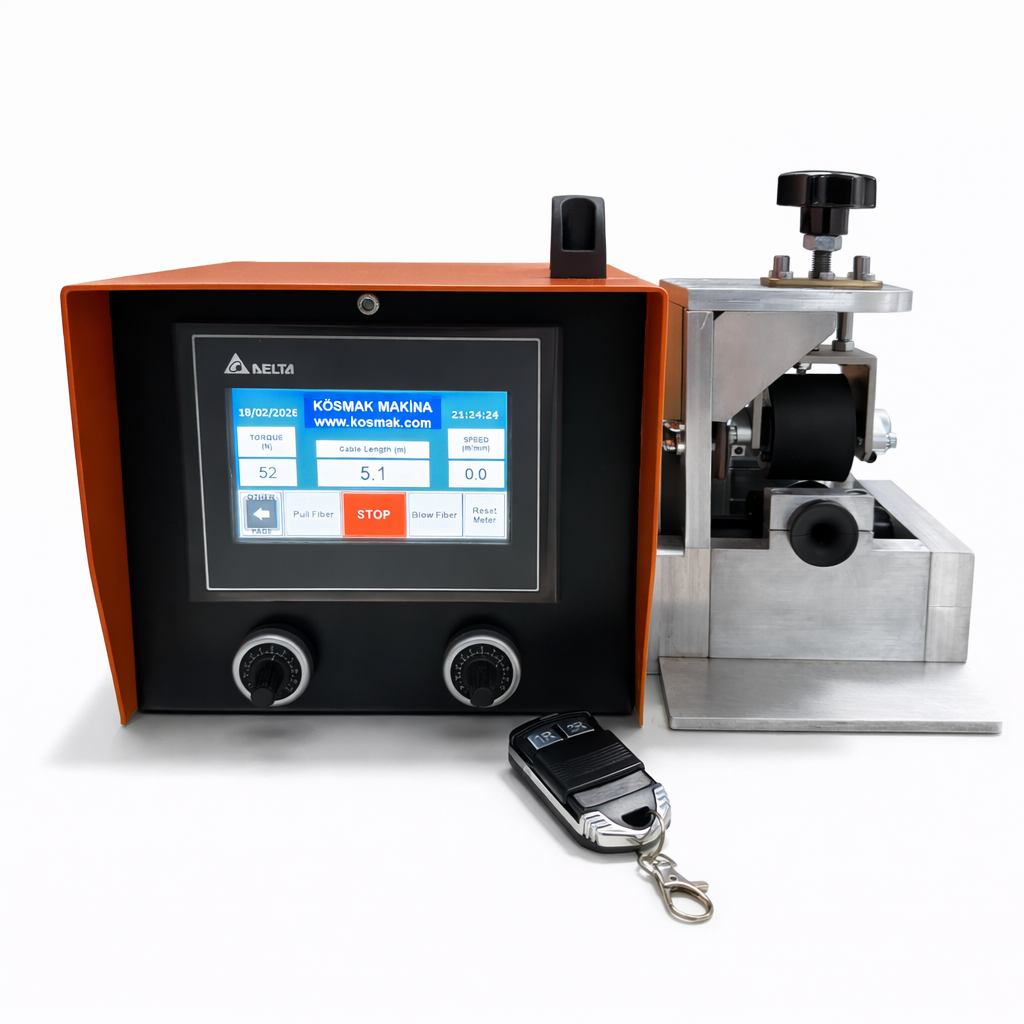

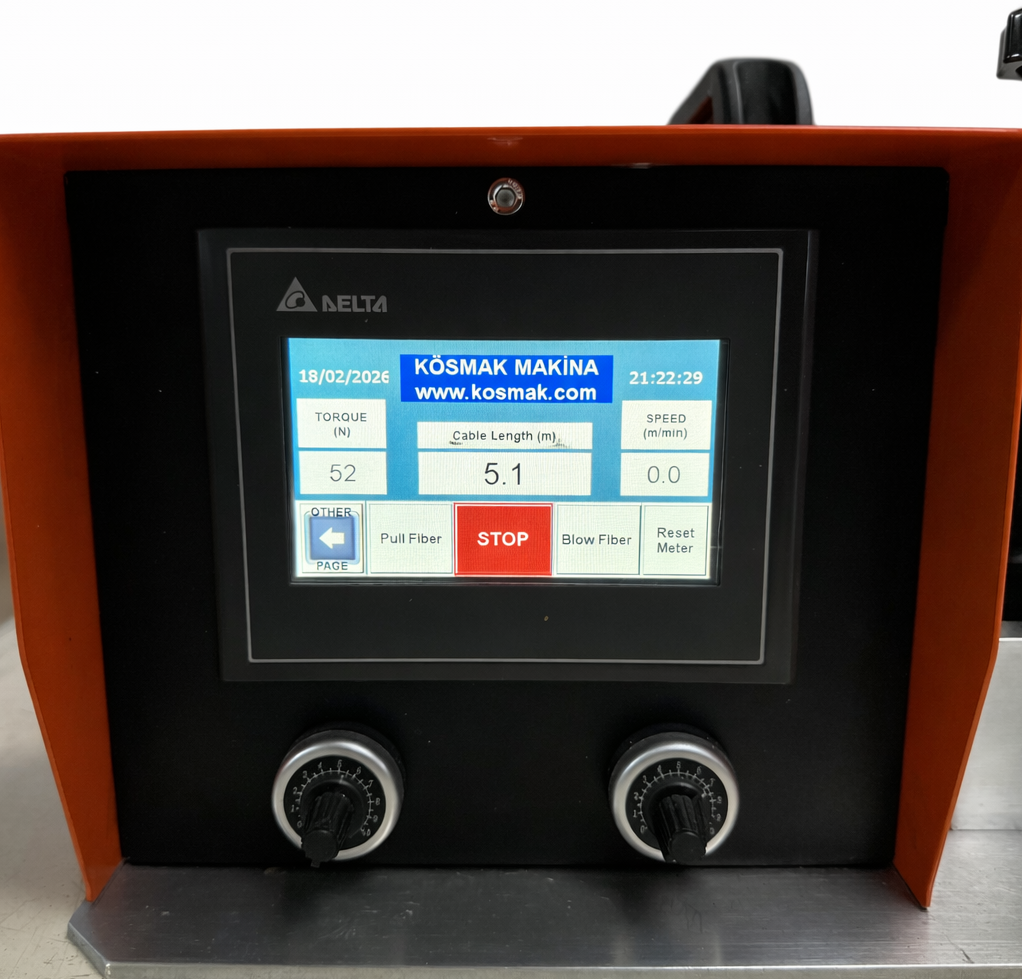

  • A 4.3” Touchscreen HDMI panel for monitoring the cable installation process, displaying data such as cable length, torque, and speed.

The machine uses compressed air to blow the cable through ducts, making it efficient in various installation scenarios. Additionally, the machine is equipped with remote control for operational flexibility, and the system is designed for easy component changes to suit different cable and duct diameters.


Technical Specifications

  • Operating Pressure: Up to 15 Bar.
  • Cable Diameter: Ø1 to Ø8 mm.
  • Duct Diameter: Ø4 to Ø18 mm.
  • Blowing Distance: Up to 1000 meters.
  • Blowing Speed: 90 meters per minute (depending on the external motor’s capacity).
  • Weight: 17.8 kg without packaging; 24.1 kg with packaging.
  • Dimensions (with packaging): 41 x 41 x 32 cm.

The ElectroFOK is ideal for companies seeking an efficient and reliable solution for fiber optic cable installation. The machine is built with durability and ease of use in mind, providing a comprehensive solution for modern fiber optic projects.


ElectroFOK Accessories

To further enhance the performance, KOSMAK Machine provides various accessories, including:

  • Drive Rollers: Options for different cable sizes (Ø1 - Ø8 mm).
  • Nutring Seals: Seals for different cable diameters to ensure no air leakage during installation.
  • Duct Connection Tools: For different duct diameters (Ø4 - Ø18 mm).

Operating the ElectroFOK

The ElectroFOK comes with an operator guide and is easy to set up. Users can follow these basic steps:

  1. Set up the Nutring Seal based on the cable diameter.
  2. Align the cable using the proper aligning tools to ensure smooth entry into the drive rollers.
  3. Connect the compressor to the quick coupling part and pressurize the hose.
  4. Use the HDMI panel to monitor the cable installation process, including adjusting the cable blowing speed and torque.
  5. A final remote control feature allows users to control the machine from a distance for added convenience.

Conclusion

With its innovative design and efficient performance, the ElectroFOK fiber optic cable blowing machine represents a leap forward in the telecommunications industry. KOSMAK Machine's commitment to quality, customer satisfaction, and technological advancements has made them a trusted name in the fiber optic cable installation sector. Whether for local or international projects, the ElectroFOK is a reliable choice for businesses looking to optimize their cable installation processes.
