Accessories for cable blowing machines are used to facilitate and increase the efficiency of the work done before, during and after cable blowing. The accessories are specially designed according to the demands of the customers and manufactured to provide optimum usage possibilities. There different types of accessories for fiber optic cable blowing machines.

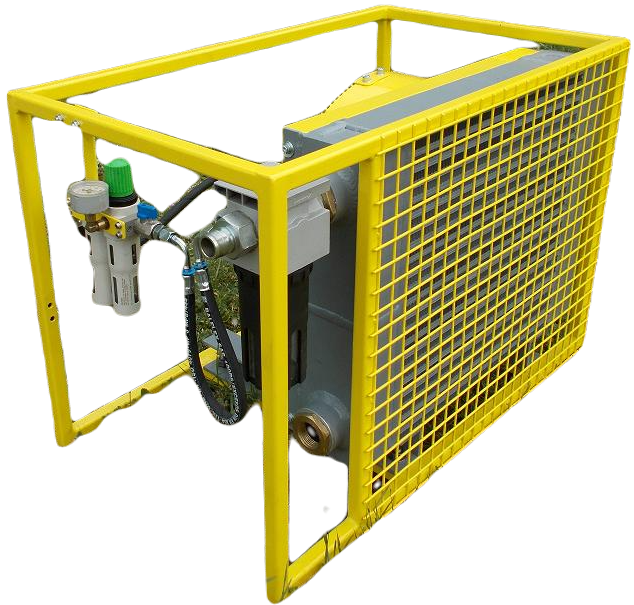

AIR COOLER: Air Cooler remarkably effects and increases the "blowing" performances and protects the cable and the duct from the high temperature with the cooling feature of this accessory when climate temperature exceeds 20°C

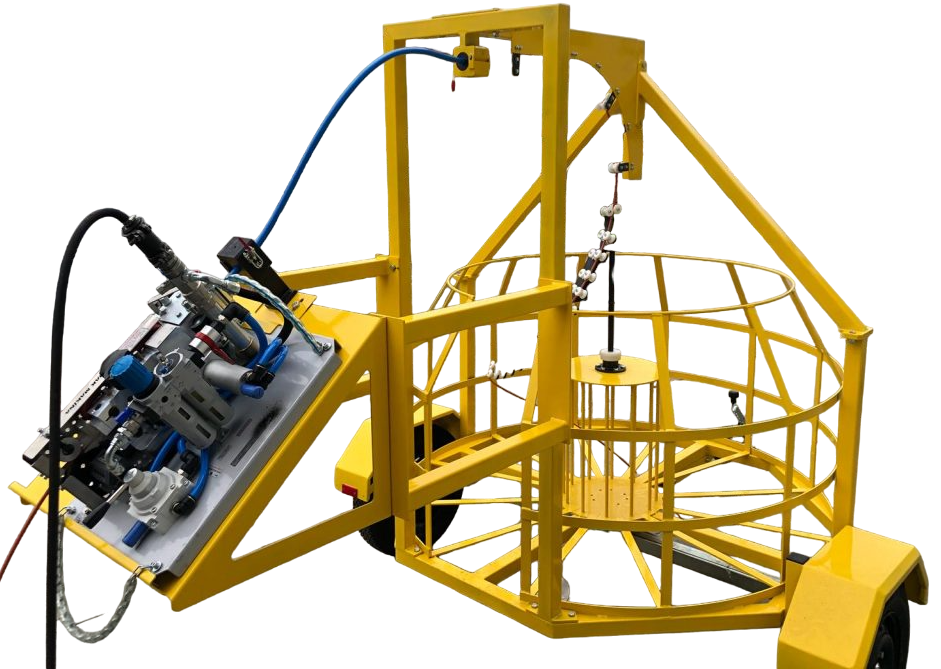

CABLE FLEETER: The Trailer Mounted Cable Fleeter replaces the manual handling for "figure eighting" cable and gives extra protection and security to the cable.

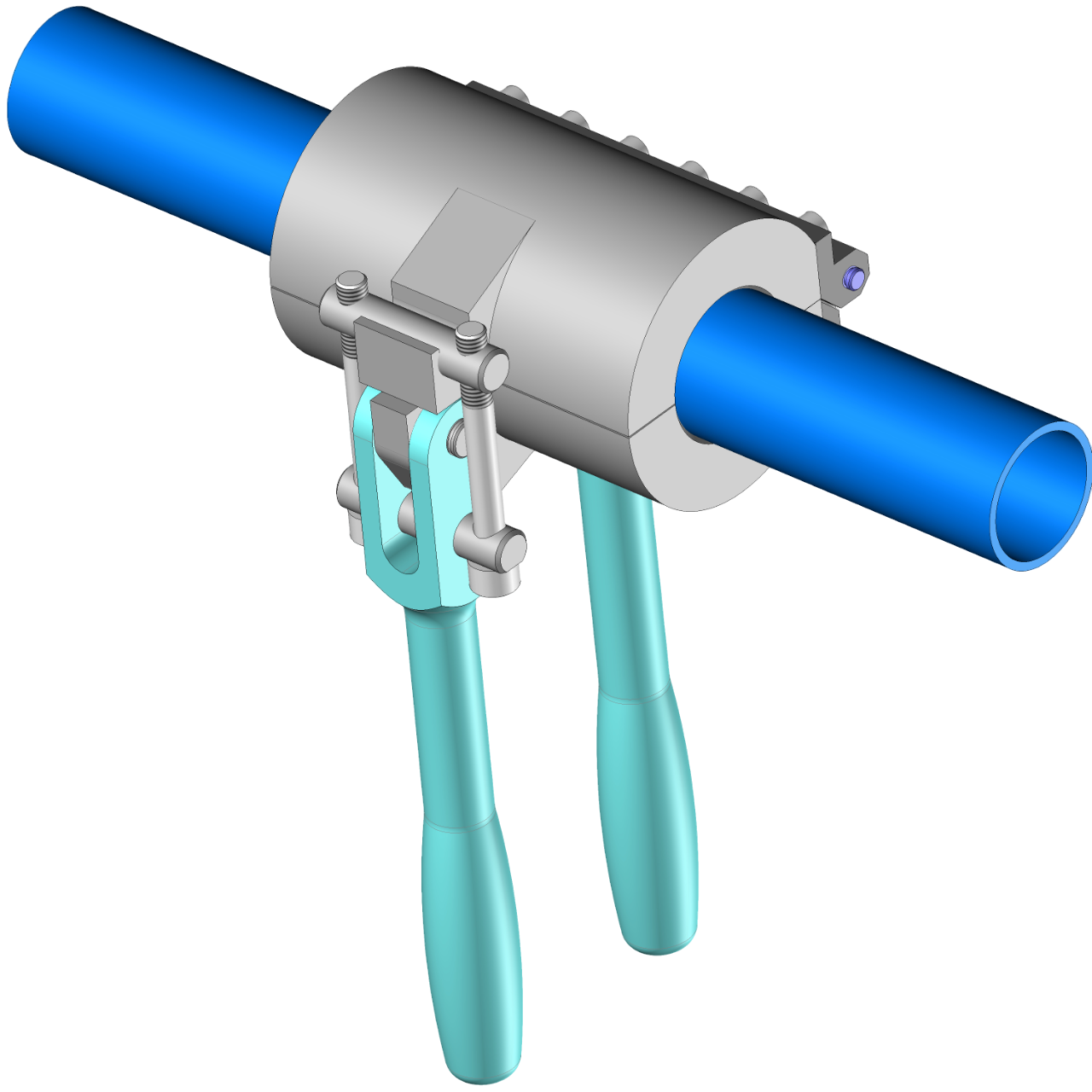

DUCT COUPLER: Carbon steel split Duct Coupler is hinged and for temporarily coupling all types of innerduct during the cable blowing process.

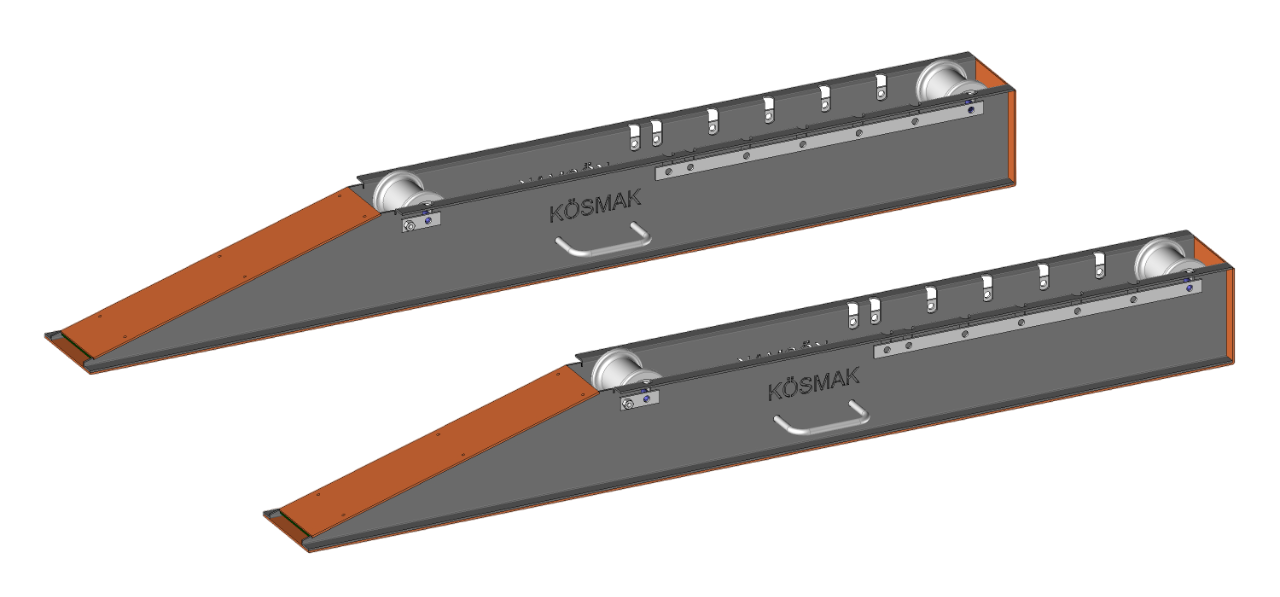

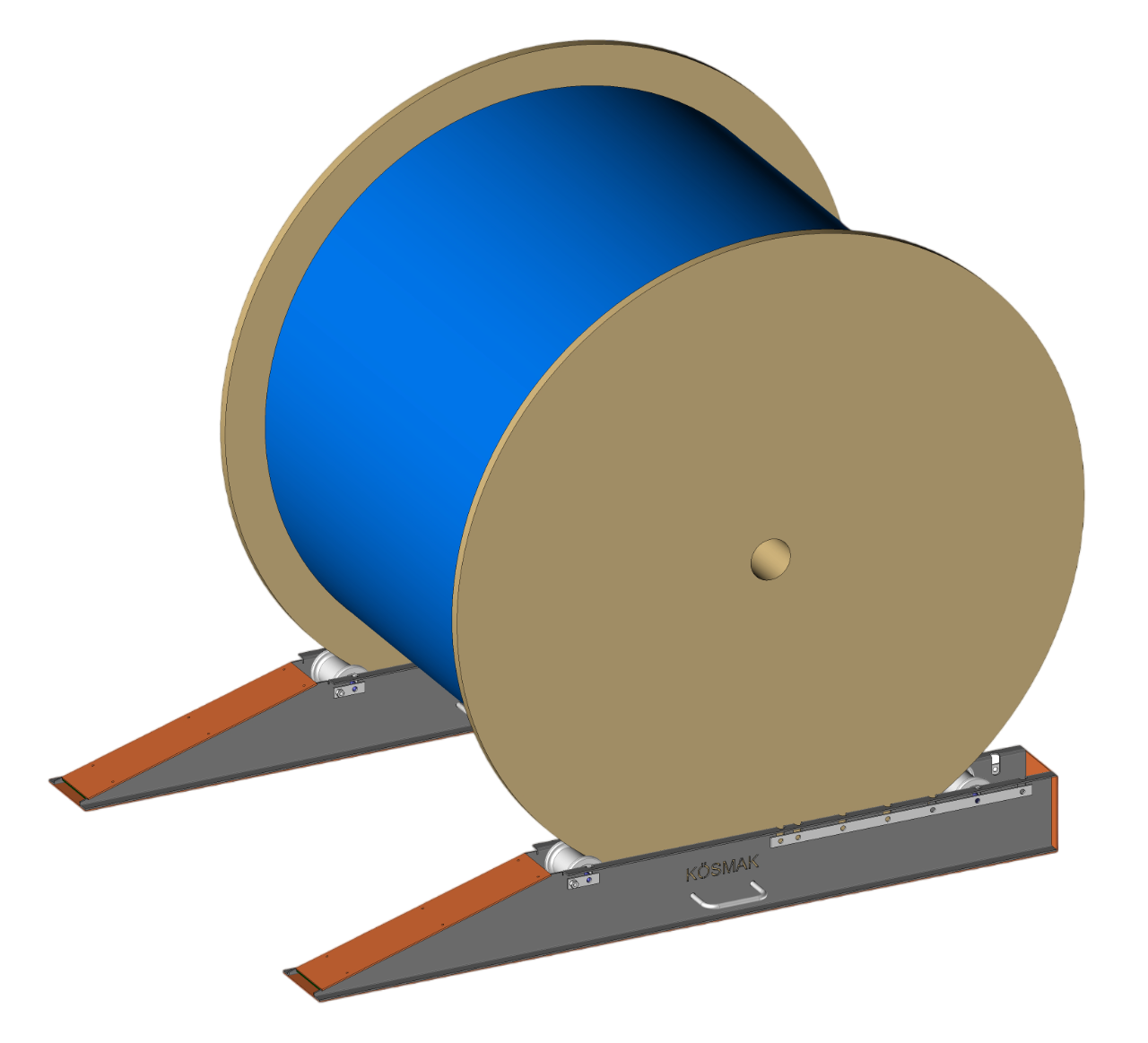

CABLE DRUM ROLLER ON BEARINGS: The tool for Rolling cable on it. You can use cable drum roller for different drum diameters and different widths.
CABLE DRUM ROLLER ON PIPE: This product is new type of “Cable Drum Roller on Bearings” with it’s new name that “Cable Drum Roller on Pipe”. It does same work with “Cable Drum Roller on Bearings.
Y-CONNECTOR: The Single size junction box consist of an polyamid base and cover that structure a pressurized air chamber into which one finish of a current involved inner duct can be appended.
Photo gallery
See the equipment
KÖSMAK MACHINE - ALL BLOWING MACHINES AND ACCESSORIES #blowingmachine #accessories #machine
Official machines and accessories range overview. Watch on YouTube
Technical documentation
Accessory selection: cooling, duct connections and drum handling
The English accessories catalogue treats each accessory as a separate item. The air cooler is positioned between the compressor and the cable blowing machine. The duct coupler temporarily connects duct sections during blowing. The two drum-roller designs have different supported drum ranges. The Y-connector is intended for introducing another cable or microduct into an already occupied duct, using seals selected for the existing and new cable arrangement.
The reference table keeps each accessory's published values separate. Cable and duct diameters should be stated when requesting a Y-connector configuration; the catalogue says the required seals are not included in its shipping configuration.
Source: Accessories English catalogue, physical pages 5 and 9-12. Use the physical page column to locate each accessory. The English and Turkish catalogue downloads retain their original contents and URLs; neither silently replaces the unavailable ACCESSORIES-2024.pdf.
