DRILL FOK
Cable blowing machine with drilling tool Now you can depend on the same KÖSMAK quality as our larger machines in a new smaller package. The Drill fok installs microcable and its versatility saves you money. The design of the Drillfok provides for quick and easy component changes for differentcable or duct sizes. Its compact size and portable maneuverability make the Drillfok is ideally suited for either outside or in-building use.
The Drillfok uses compressed air to install the cable. The drive roller, powered by most types of cordless drills (not included), control the microfiber as it is propelled into the microduct.
Drillfok machine takes name from drilling tool because you do not need to use a motor with this machine you only need to buy a standart drilling tool like Bosch, Dewalt.
Main Features
•Controll by technician.
•Working with drilling tool.
•Duct Diameter =Changeable by tools
•Cable diameter = 1mm to 5 mm.
•Needed air= Minimum 12 bar - 1 metercup / minute.
•Dimensions= 31cm*25 cm*32cm
•Weight =10 kg•Cable installing velocity =Changeable by the drilling tool
• Direction =Forward and backward
•Cable pusher rolls can change easily.
•One air inlet from compressor with quick connection
•Quick connection part is giving with machine.
• Easily changeable for different cables
•Easily changeable for different ducts.

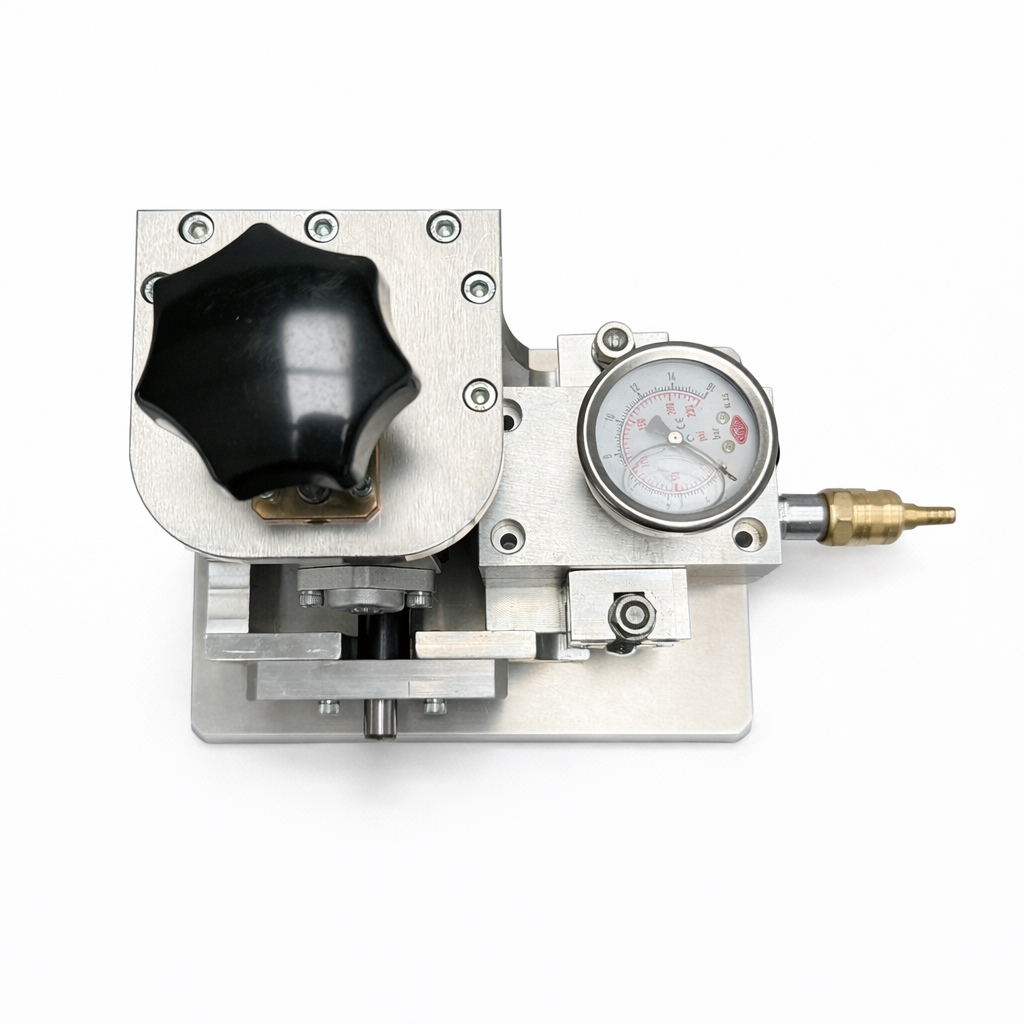

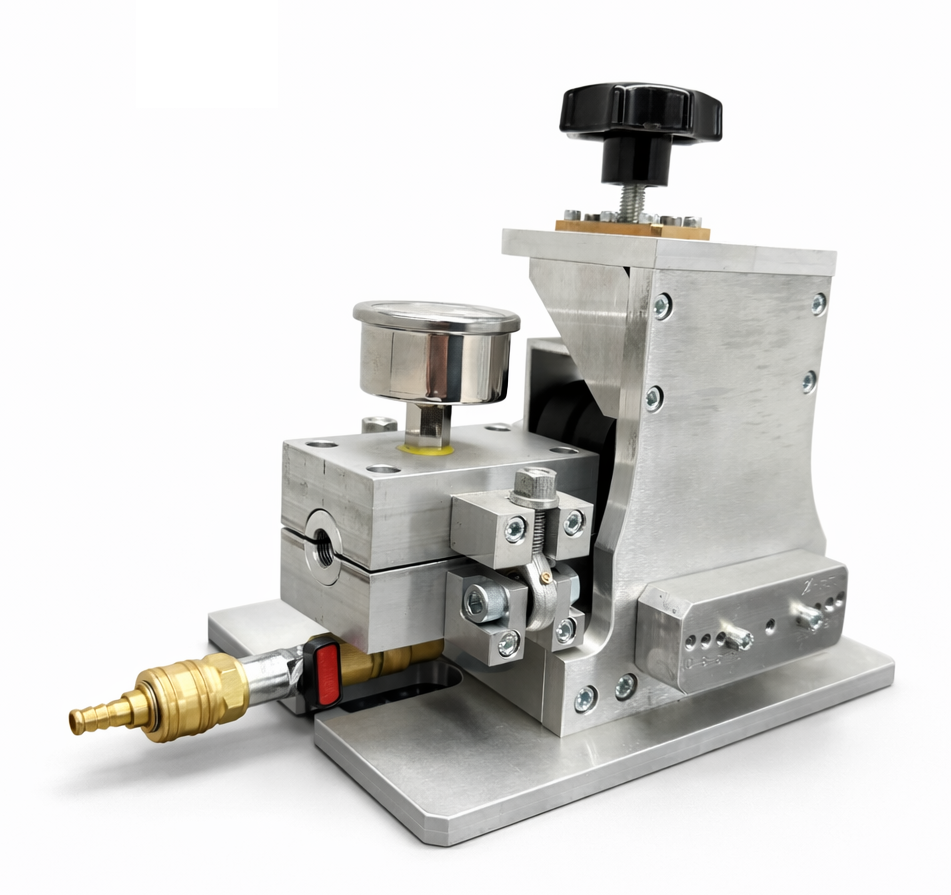

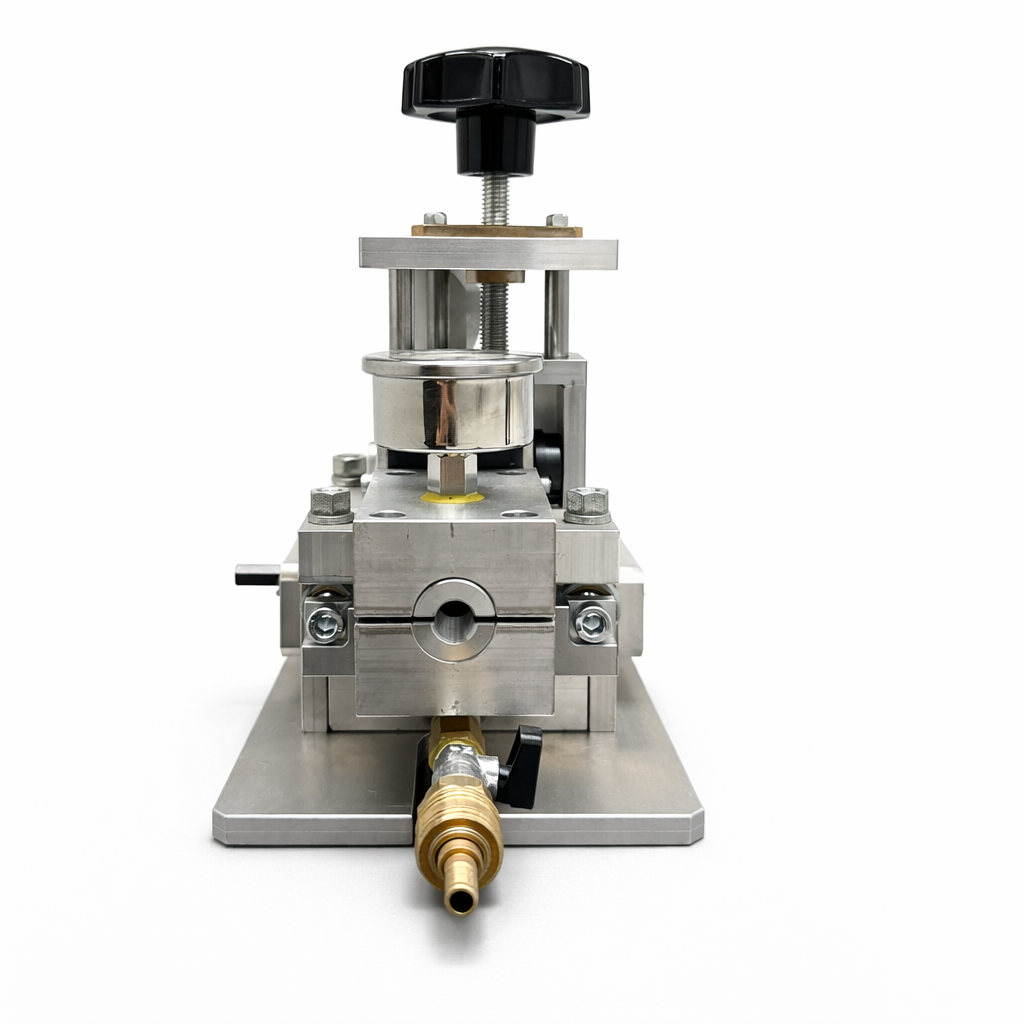

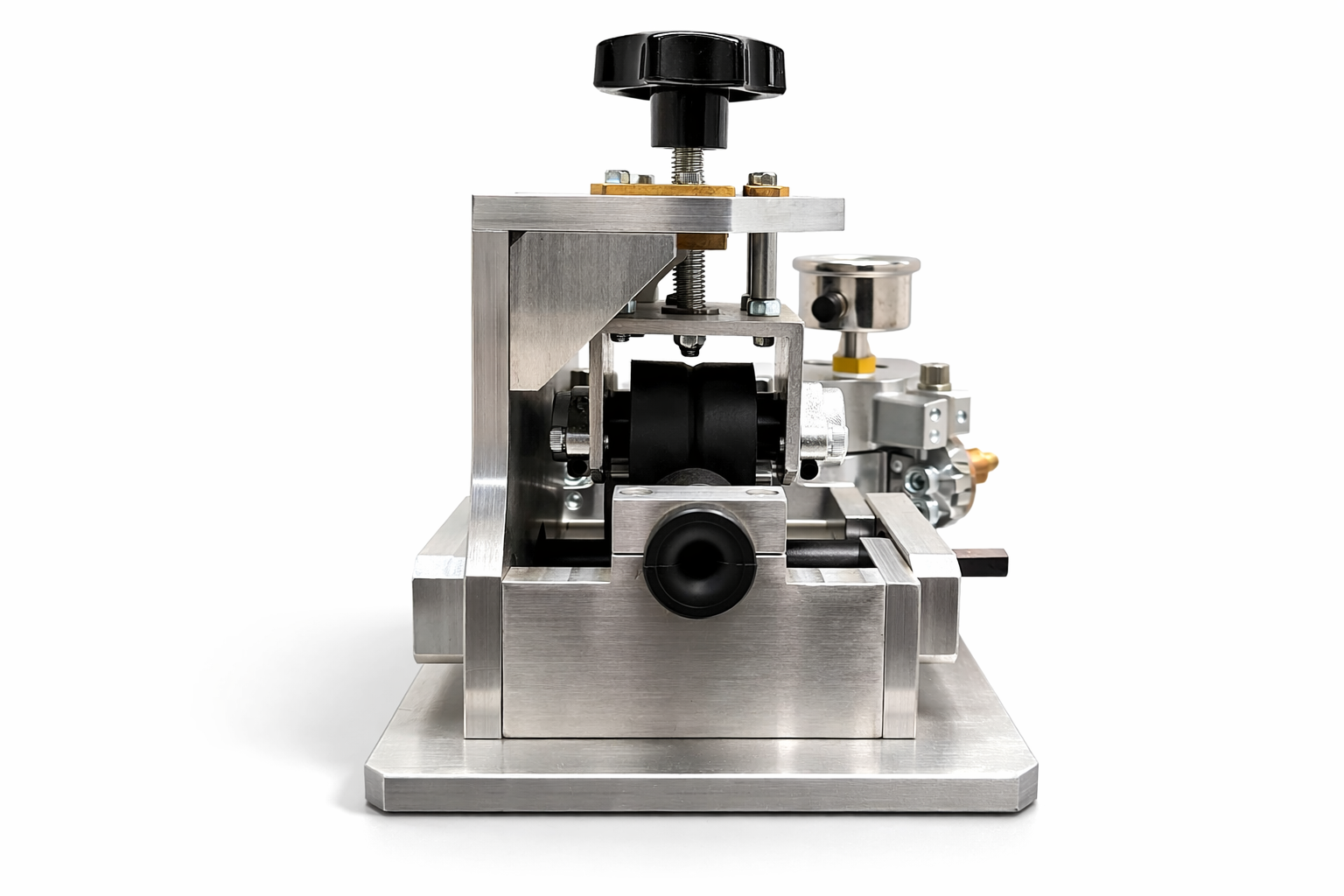

Photo gallery
See the equipment
DRILL FOK #drill #fiber #optic #cable #blowing #machine
Matching video verified on the official Kösmak channel. Watch on YouTube
Technical documentation
Drill FOK: external drill drive and selectable tooling
The dedicated Drill FOK datasheet identifies an external drilling tool as the drive source. Its technical table lists forward and backward operation, a mechanical meter indicator and a quick connection for the compressor pipe. The supplied-equipment page lists cable inserts, duct inserts, seals, a wooden case and a quick-insert air connection. The chargeable drilling tool, lubricant oil and air compressor are listed separately as not included.
The accessory table on physical page 5 identifies separate drive rollers, cable aligning parts, nutring seals and duct connection tools. Specify the intended cable and microduct diameters when requesting the machine so the appropriate components can be identified.
Source: Drill FOK datasheet, physical pages 3-5. Technical data is on physical page 4 (printed page 3). This section uses that dedicated datasheet rather than mixing its weight values with older catalogue figures.
