Cable Pushing Machines
Cable Pushing Machines are designed to ensure fast, safe, and efficient installation of fiber optic and infrastructure cables in various field conditions. These machines reduce manual labor, increase installation speed, and provide consistent pushing force for long-distance cable laying operations.
Available in electrical and hydraulic versions, Cable Pushing Machines can be adapted to different cable diameters, site conditions, and project requirements.
Cable Pushing Machine Electrical CPME

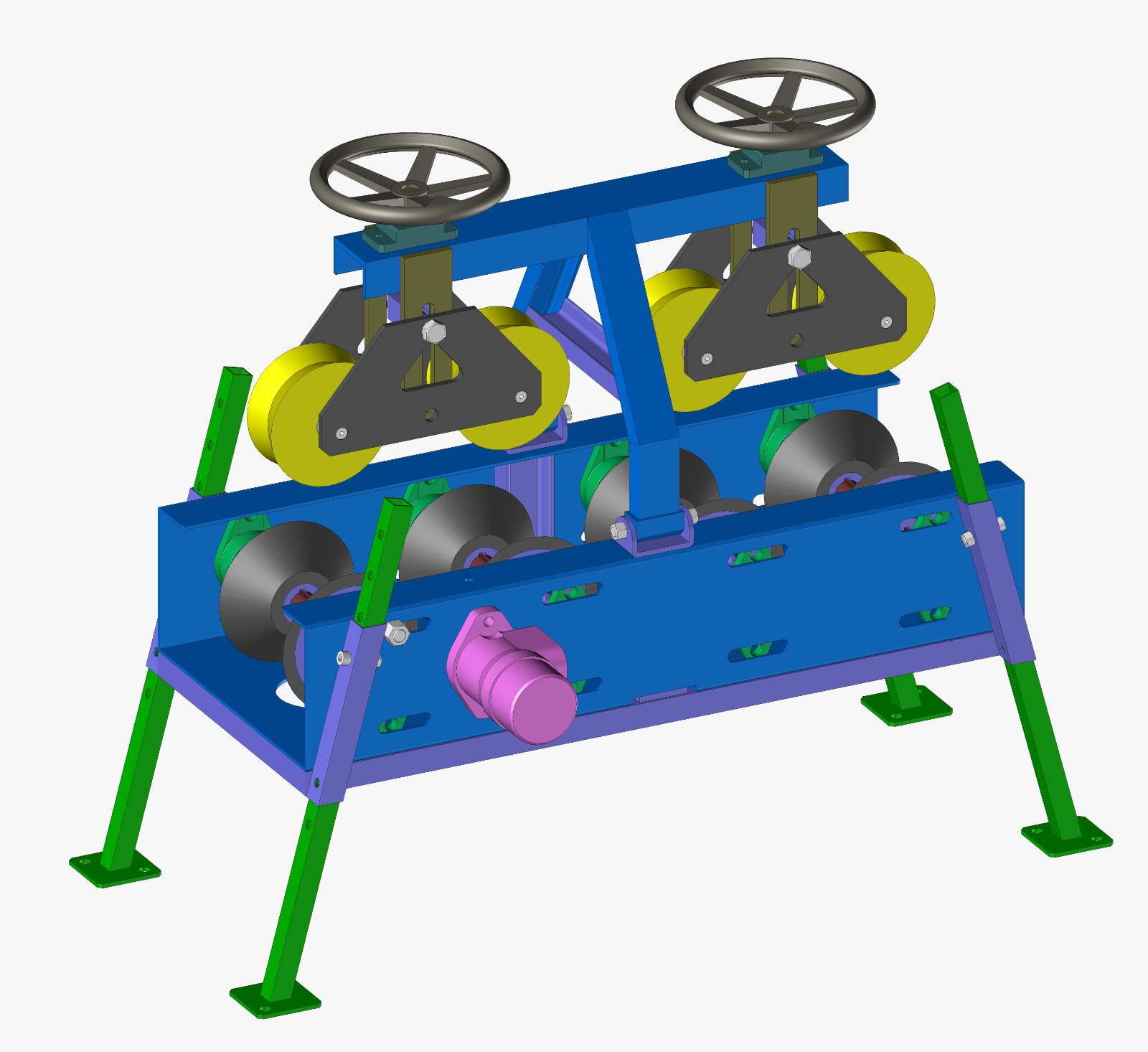

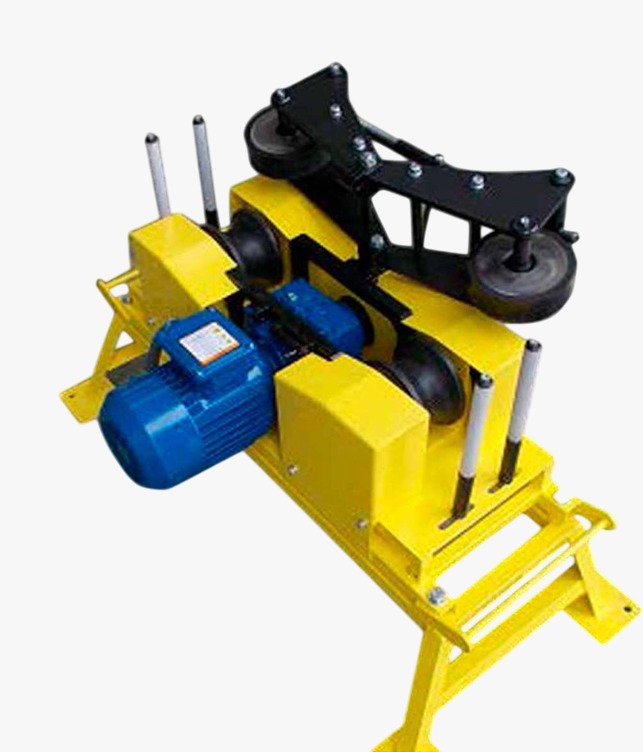

The CPME model is an electrically driven cable pushing machine developed to perform cable installation without the need for manual force. The cable is guided through specially designed driving pulleys and counter pulleys that apply uniform pressure, ensuring stable and controlled cable movement.
The pulleys are coated with high-elastic, wear-resistant rubber to provide sufficient friction without damaging the cable surface. The counter pulleys can be opened easily, allowing fast cable insertion and removal.

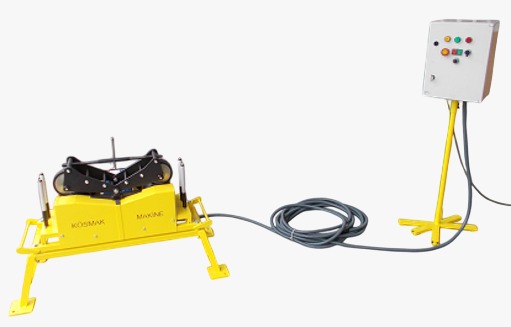

The machine is operated via an external control panel that allows start, stop, and speed adjustment functions. With a 20-meter connection cable between the machine and the control panel, the operator can work at a safe distance. The CPME model can be used with or without its support table depending on site conditions.
Technical Specifications CPME
Cable diameter ranges from 20 mm to 60 mm.
Drive unit is electrical.
Electric motor power is 0.75 kW.
Pushing torque is 120 Nm.
Pushing force is 2.4 kN.
Pushing speed is adjustable between 0 and 19 meters per minute.
Dimensions with table are 120 x 100 x 80 cm.
Dimensions without table are 90 x 50 x 45 cm.
Total weight with table and control panel is 80 kg.
Package Contents
Electric motor
Control panel
Cable pushing machine
Protected wooden case
Cable Pushing Machine Hydraulic CPMH
The CPMH model is designed for high-capacity cable installation applications requiring strong pushing force and reliable performance under demanding conditions. It supports cable diameters from 20 mm up to 150 mm and is powered by a hydraulic motor connected to a hydraulic power unit driven by a Honda gasoline engine.
The robust chassis and precise feeding system ensure stable cable movement and high operational safety. Adjustable hydraulic pressure allows the machine to handle different cable sizes and weights effectively.
With 10-meter hydraulic hoses, the cable pushing unit can be positioned inside a manhole while the hydraulic power unit remains outside. This configuration improves safety and ease of operation in confined spaces. The system offers low fuel consumption, long service life, and minimal maintenance requirements.
Technical Specifications CPMH
Cable diameter ranges from 20 mm to 150 mm.
Drive unit is hydraulic.
Pushing torque is 45 daNm.
Pushing force is 11 kN.
Maximum pushing speed is 16 meters per minute.
Engine type is Honda GX270 gasoline engine.
Maximum engine power is 6.3 kW.
Maximum engine speed is 3600 rpm.
Hydraulic pump delivery rate is 20 liters per minute.
Hydraulic pressure is 150 bar.
Total system weight ranges between 172 and 176 kg.
Package Contents
Hydraulic motor
Hydraulic power unit
Cable pushing machine
Protected wooden case
Photo gallery
See the equipment
Cable Pushing Machine #cablepushing
Matching video verified on the official Kösmak channel. Watch on YouTube
Technical documentation
Cable pushing: separate electric and hydraulic configurations
The cable-pushing catalogue presents two models, CPME and CPMH. The electric CPME passes cable through two pairs of driven pulleys and counter pulleys, with a separate control panel for starting, stopping and speed adjustment. The hydraulic CPMH uses a hydraulic motor and a power unit driven by a Honda gasoline engine. The two model tables are kept separate here so electric and hydraulic specifications are not combined.
| Parameter | Published value |
|---|---|
| Drive | Hydraulic |
| Pushing torque / force | 45 daNm / 11 kN |
| Maximum speed | 16 m/min |
| Power-pack engine | Honda Gasoline GX270 |
| Engine maximum power / speed | 6.3 kW / 3600 rpm |
| Pump delivery / hydraulic pressure | 20 L/min / 150 bar |
| Wooden case, L × W × H | 1820 × 710 × 900 mm |
| Machine / total weight | 102-106 / 172-176 kg |
The CPMH page gives a 50-150 mm cable range in its narrative but 20-150 mm in its technical table. No single lower cable limit is asserted here; confirm the intended cable diameter and tooling with Kösmak. The same page describes 10 m hydraulic hoses for operating the machine separately from the power unit.
Source: Cable Pushing Machine catalogue, physical page 3 for CPME and page 4 for CPMH. Original PDF unchanged.
