KÖSMAK AIR MOTORS
High-Performance Pneumatic Air Motors
As Kösmak Makina, we manufacture high-performance pneumatic air motors backed by over 20 years of experience. Our motors are not only produced but also actively used in our own fiber optic cable blowing machines, which are operating worldwide. This ensures that our products are field-proven, with durability and performance tested under real working conditions.
Our air motors stand out with high efficiency, long service life, and stable operation. They deliver reliable performance even under demanding conditions, while minimizing operating costs thanks to their low maintenance requirements. With their compact design and strong torque characteristics, they can be seamlessly integrated into a wide range of industrial applications.
Kösmak Makina provides OEM manufacturers with high-quality, cost-effective, and fully compatible solutions. With our fast production capability and flexible approach, we confidently deliver the most suitable solutions tailored to your needs.
Industrial Solutions

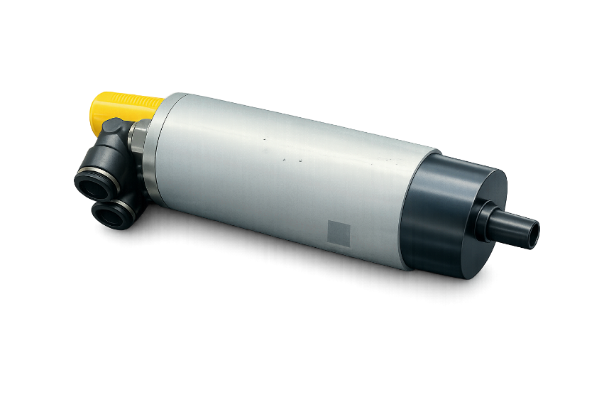

PNMK-800 Air Motor
MODEL: PNMK-800
The Kösmak PNMK-800 pneumatic motor is designed for industrial applications requiring durability, continuous operation, and reliable performance. This pneumatic air motor features a Ø14 mm shaft and a 3/8" elbow hose connection suitable for Ø14 pneumatic air inlet hoses, ensuring easy and secure installation. Its compact design, robust output shaft, and stable operation deliver reliable performance in industrial applications.
TECHNICAL SPECIFICATIONS
Speed 820 RPM
Power 0,75 kW
Torque 8.5 Nm
Air Consumption 0.89 m³/min
Shaft Diameter 14 mm
Weight 1,7 kg
RPM at 3 bar -
RPM at 4 bar -
RPM at 5 bar -
RPM at 6 bar -

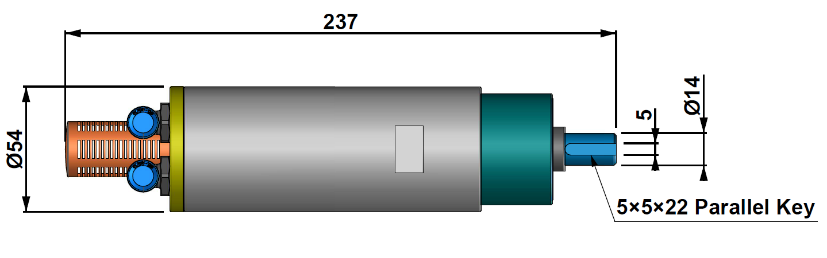

All dimensions are given in millimeters.
PNMK-800 dimensions
